US 99

US 99 Pilot or R&D food Freeze dryer

Us Freeze dry 99 is a great machine for any process. With an ice capacity greater then 1300 lbs, and around 323 square feet shelf area, This machine is a great value for anyone wanting to scale up from a home based business, a pilot model or for R&D. It will also be a great piece to use for companies looking to process any herbal plant products. Compare it to our competitors, For the price of one of theirs, you can have 2 of ours.    That is how committed we are and capable of delivering quality equipment at an appropriate cost for the application. We aren't vacuum dryers masked as freeze dryers. Our Shelves Can also freeze your product. Yes its a benefit and absolute must for doing complex products that require precise temp control. Don't waste your time with machines that cannot, unless you are using steam to heat shelves, for food and pet food. You are wasting your time and paying a premium. Not only in equipment, but in operating costs.

DOWNLOAD PDF

Dimensions

Capacity

Other

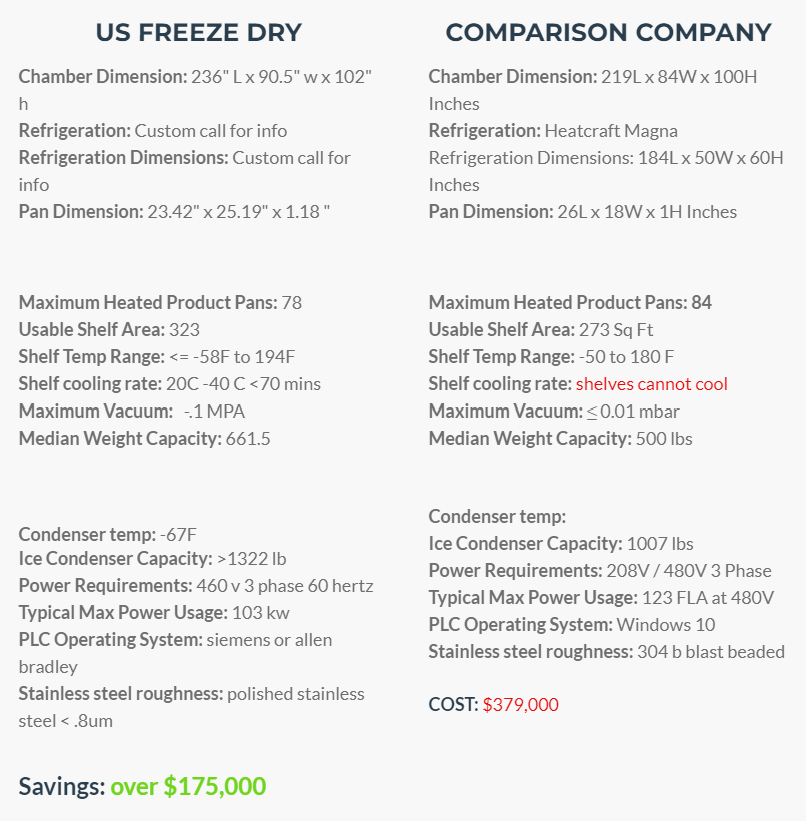

US FREEZE DRY

Chamber Dimension: 236" L x 90.5" w x 102" h

Refrigeration: Custom call for info

Refrigeration Dimensions: Custom call for info

Pan Dimension: 23.42" x 25.19" x 1.18 "

Maximum Heated Product Pans: 78

Usable Shelf Area: 323

Shelf Temp Range: <= -58F to 194F

Shelf cooling rate: 20C -40 C <70 mins

Maximum Vacuum:   -.1 MPA

Median Weight Capacity: 661.5

Condenser temp: -67F

Ice Condenser Capacity: >1322 lb

Power Requirements: 460 v 3 phase 60 hertz

Typical Max Power Usage: 103 kw

PLC Operating System: siemens or allen bradley

Stainless steel roughness: polished stainless steel < .8um


Savings: over $175,000

COMPARISON COMPANY

Chamber Dimension: 219L x 84W x 100H Inches

Refrigeration: Heatcraft Magna

Refrigeration Dimensions: 184L x 50W x 60H Inches

Pan Dimension: 26L x 18W x 1H Inches

Maximum Heated Product Pans: 84

Usable Shelf Area: 273 Sq Ft

Shelf Temp Range: -50 to 180 F

Shelf cooling rate: shelves cannot cool

Maximum Vacuum: ≤ 0.01 mbar

Median Weight Capacity: 500 lbs


Condenser temp:

Ice Condenser Capacity: 1007 lbs

Power Requirements: 208V / 480V 3 Phase

Typical Max Power Usage: 123 FLA at 480V

PLC Operating System: Windows 10

Stainless steel roughness: 304 b blast beaded

COST: $379,000

Feature Comparison

US FREEZE DRY COMPARISON COMPANY
Polished Stainless Steel Exterior and Stainless Steel Interior
304b Blast Beaded X
More Economical Refrigeration
Can Shelves Freeze Product
Reduced Loading time and Improves Efficiency
Deeper Vacuum with Less Power Consumption
Ability to Clean the Heating/Cooling Shelves the Product Trays Sit On
Green Energy Utility and Water Saving Ability (Ask us about it.)
Stainless Steel Heating and Cooling Shelves
Ice Falls in the Same Chamber as Product is Loaded X
Must Drag the Ice Out by Hand Before Loading X
Made with Aluminum Carts X
Aluminum Trays X
