US 182

US 182 Small Production Freeze Dryer

Us Freeze dry 182 is an entry level machine for any process. A great beginning production dryer.  With an ice capacity of about  2,200 lb, and around 600 square feet shelf area, a great value regardless of what you are drying, with shelves that freeze, maintaining low temps during primary dry, that vacuum dryers cannot, or any dryer that uses electric to heat and cannot cool. this versatile machine can do any process your business needs. And at more the half the cost of our competitors, you wont need to think twice about the value, or the superior level of support that comes with this Lyo.

DOWNLOAD PDF

Dimensions

Capacity

Other

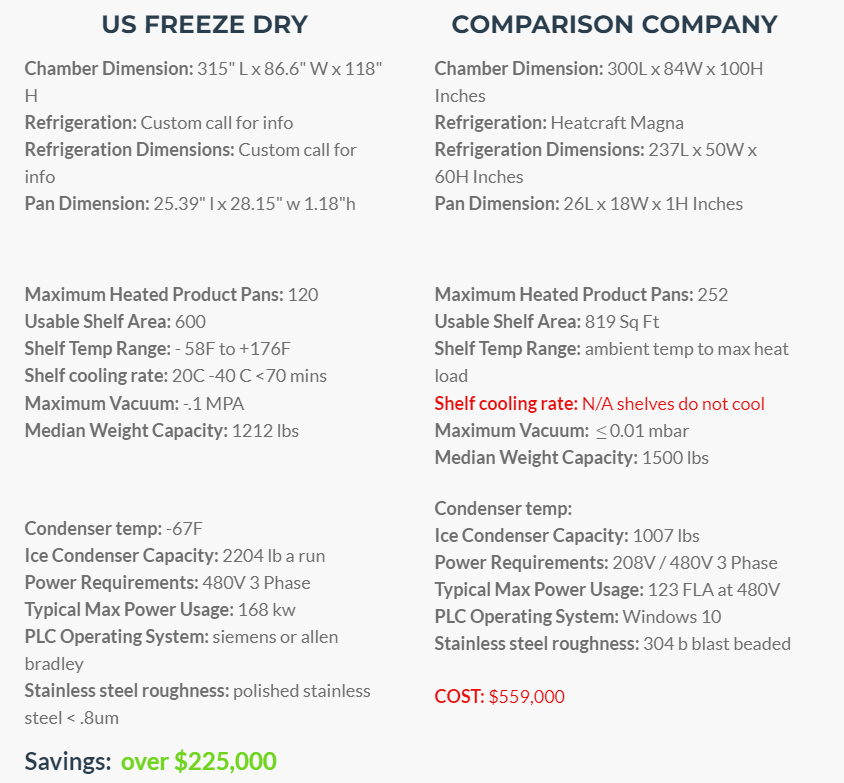

US FREEZE DRY

Chamber Dimension: 315" L x 86.6" W x 118" H

Refrigeration: Custom call for info

Refrigeration Dimensions: Custom call for info

Pan Dimension: 25.39" l x 28.15" w 1.18"h

Chamber Dimension: 315" L x 86.6" W x 118" H

Refrigeration: Custom call for info

Refrigeration Dimensions: Custom call for info

Pan Dimension: 25.39" l x 28.15" w 1.18"h


Condenser temp: -67F

Ice Condenser Capacity: 2204 lb a run

Power Requirements: 480V 3 Phase

Typical Max Power Usage: 168 kw

PLC Operating System: siemens or allen bradley

Stainless steel roughness: polished stainless steel < .8um

Savings:  over $225,000

COMPARISON COMPANY

Chamber Dimension: 300L x 84W x 100H Inches

Refrigeration: Heatcraft Magna

Refrigeration Dimensions: 237L x 50W x 60H Inches

Pan Dimension: 26L x 18W x 1H Inches

Maximum Heated Product Pans: 252

Usable Shelf Area: 819 Sq Ft

Shelf Temp Range: ambient temp to max heat load

Shelf cooling rate: N/A shelves do not cool

Maximum Vacuum:  ≤ 0.01 mbar

Median Weight Capacity: 1500 lbs

Condenser temp:

Ice Condenser Capacity: 1007 lbs

Power Requirements: 208V / 480V 3 Phase

Typical Max Power Usage: 123 FLA at 480V

PLC Operating System: Windows 10

Stainless steel roughness: 304 b blast beaded

COST: $559,000

Feature Comparison

US FREEZE DRY COMPARISON COMPANY
Polished Stainless Steel Exterior and Stainless Steel Interior
304b Blast Beaded X
More Economical Refrigeration
Can Shelves Freeze Product
Reduced Loading time and Improves Efficiency
Deeper Vacuum with Less Power Consumption
Ability to Clean the Heating/Cooling Shelves the Product Trays Sit On
Green Energy Utility and Water Saving Ability (Ask us about it.)
Stainless Steel Heating and Cooling Shelves
Ice Falls in the Same Chamber as Product is Loaded X
Must Drag the Ice Out by Hand Before Loading X
Made with Aluminum Carts X
Aluminum Trays X
