US 33

US 33 Pilot scale

 Us Freeze dry 33 is a great machine for any process. With an ice capacity of about 440 lb, and around 108 square feet shelf area, that would allow you to freeze dry around 220 lb of food.  This machine is a great value for anyone wanting to scale up from a home based business, a pilot model or for R&d.   It will also be a great piece to use for companies looking to process any herbal plant products. Remember, we custom make equipment sized for you.

DOWNLOAD PDF

Dimensions

Capacity

Other

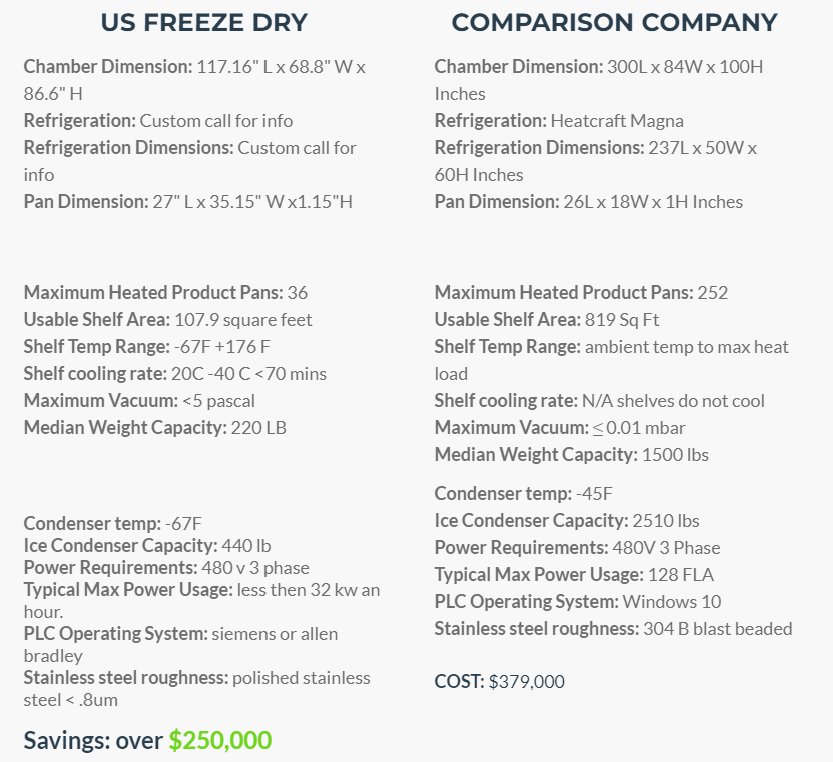

US FREEZE DRY

Chamber Dimension: 117.16" L x 68.8" W x 86.6" H

Refrigeration: Custom call for info

Refrigeration Dimensions: Custom call for info

Pan Dimension: 27" L x 35.15" W x1.15"H

Maximum Heated Product Pans: 36

Usable Shelf Area: 107.9 square feet

Shelf Temp Range: -67F +176 F

Shelf cooling rate: 20C -40 C <70 mins

Maximum Vacuum: <5 pascal

Median Weight Capacity: 220 LB

Condenser temp: -67F

Ice Condenser Capacity: 440 lb

Power Requirements: 480 v 3 phase

Typical Max Power Usage: less then 32 kw an hour.

PLC Operating System: siemens or allen bradley

Stainless steel roughness: polished stainless steel < .8um

Savings: over $250,000

COMPARISON COMPANY

Chamber Dimension: 300L x 84W x 100H Inches

Refrigeration: Heatcraft Magna

Refrigeration Dimensions: 237L x 50W x 60H Inches

Pan Dimension: 26L x 18W x 1H Inches

Maximum Heated Product Pans: 84

Usable Shelf Area: 273 Sq Ft

Shelf Temp Range: ambient temp to max heat load

Shelf cooling rate: N/A shelves do not cool

Maximum Vacuum: ≤ 0.01 mbar

Median Weight Capacity: 504 lbs

Condenser temp: -45F

Ice Condenser Capacity: 2510 lbs

Power Requirements: 480V 3 Phase

Typical Max Power Usage: 128 FLA

PLC Operating System: Windows 10

Stainless steel roughness: 304 B blast beaded

COST: $379,000

Feature Comparison

US FREEZE DRY COMPARISON COMPANY
Polished Stainless Steel Exterior and Stainless Steel Interior
304b Blast Beaded X
More Economical Refrigeration
Can Shelves Freeze Product
Reduced Loading time and Improves Efficiency
Deeper Vacuum with Less Power Consumption
Ability to Clean the Heating/Cooling Shelves the Product Trays Sit On
Green Energy Utility and Water Saving Ability (Ask us about it.)
Stainless Steel Heating and Cooling Shelves
Ice Falls in the Same Chamber as Product is Loaded X
Must Drag the Ice Out by Hand Before Loading X
Made with Aluminum Carts X
Aluminum Trays X
