MID SIZED COMMERCIAL FREEZEDRYERS

Mid Sized Commercial Freeze Dryers

US FREEZE DRY offers a fully customized solution for your mid sized commercial  freeze dryer needs.

Designed to fit YOUR budget, YOUR process and made to scale with you

GET IN TOUCH

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Customizable Redundancy

    With options to build redundancy in the compressors, and vacuum pumps, you can eliminate downtime, for repair or maintanace.

  • Sanitation

    With optional CIP or SIP for cleaning ensuring if you dry multiple products, there is no risk of cross contamination.

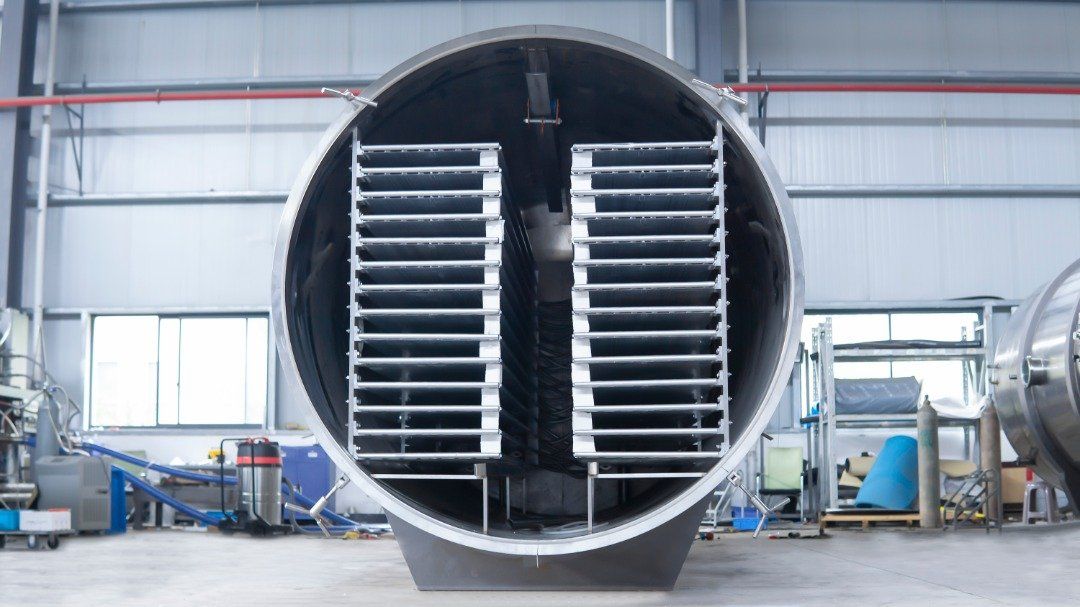

  • HVT Radiant Heating

    Aerospace grade aluminum alloy allows for even double sided Radiant heating where all the shelves are within a degree of the Shelf setpoint.  Radiant Drying offers a more even drying opposed to   Conductive drying.  Ensuring faster runtimes, and reduced energy costs.  Outdated walk in Dryers are limited in how the heat transfer from the heating element to product is obtained. This is what causes the longer runtimes.  The difference in heat from the conductive tray the product rests on, vs the Radiant heat recieved from above.

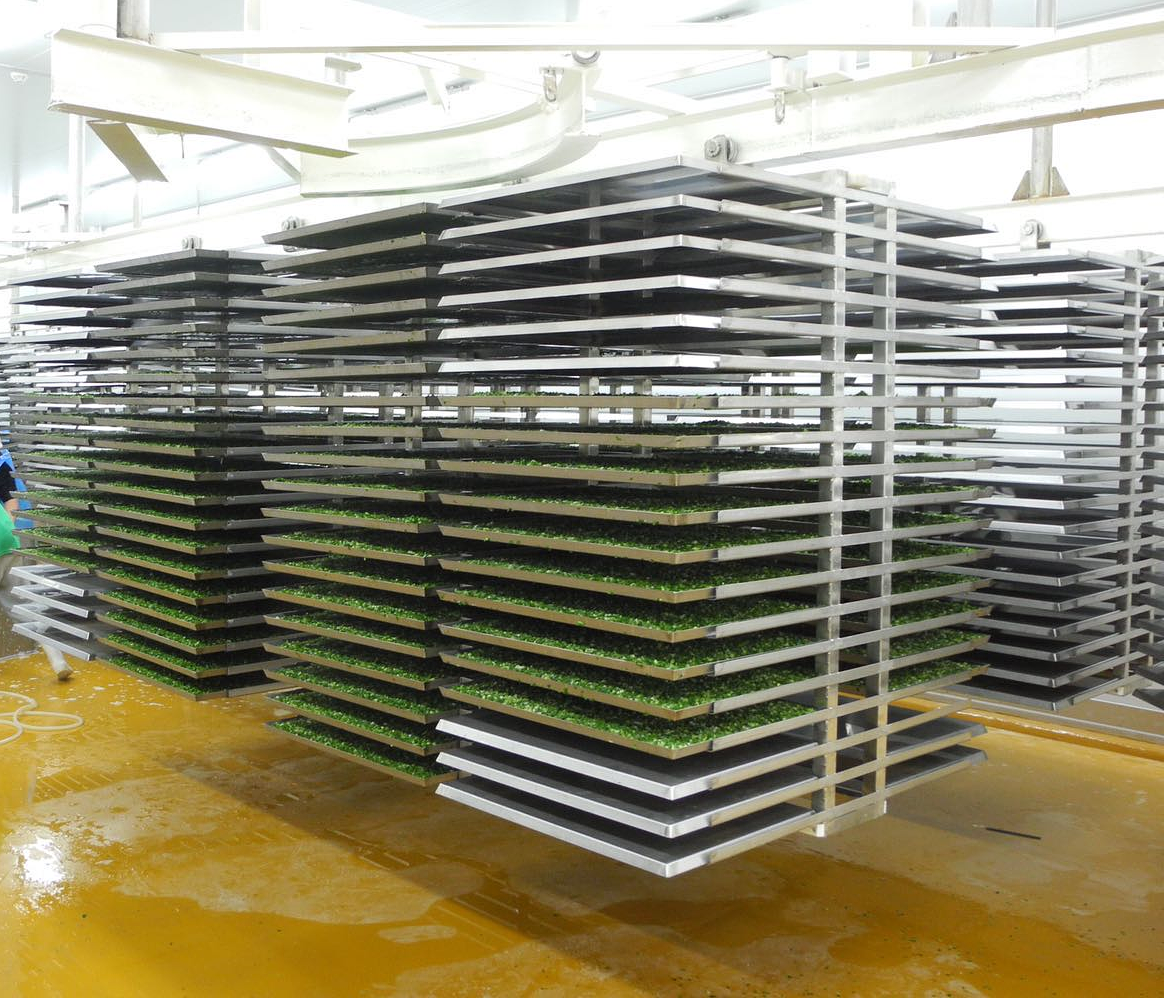

  • Without in SITU Freezing

    The product is frozen in a seperate freezer, allowing both freezeing of the next batch, and freeze drying of the current batch to happen simultaniously

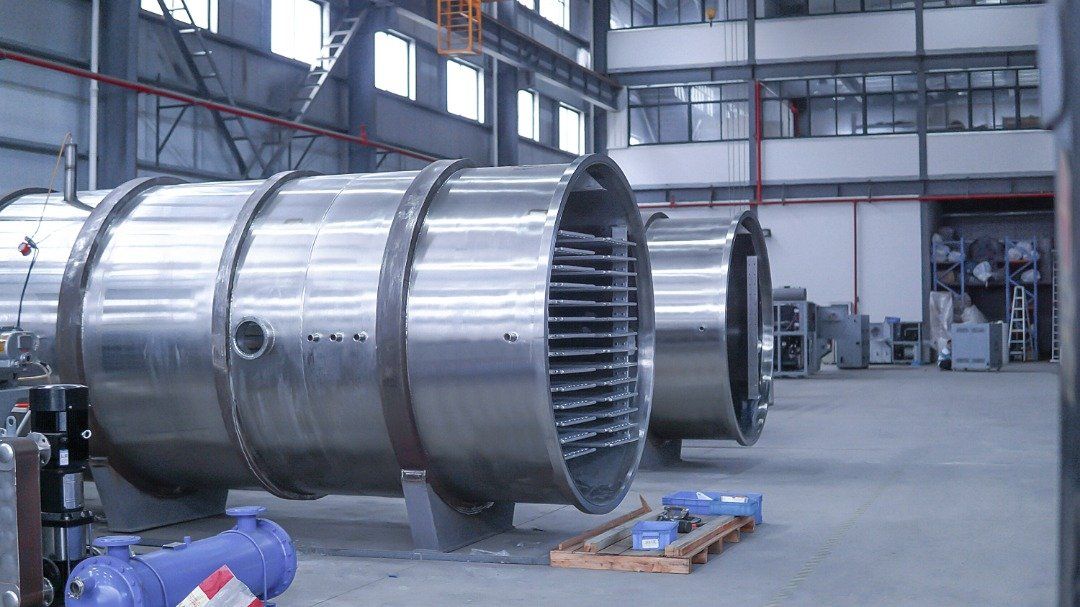

  • Condenser coils for Ice Capture

    Using a high efficiency mixed refrigeration mix allows for a long service lifem with high heat tranfer effiency allowing for faster sublimation, allowing you to drive heat faster to the product without experiencing collapse.

  • Control Package

    Our controls are flexible in allowing both manual and automatic mode during drying.   We offer the ability to remote operate the machine through a secure connection.   Adins can set user level access and passwords.

  • Optimized Process Control

    Precise control of the vacuum and heating during each set point.  Ability to control each step and ramp rate.

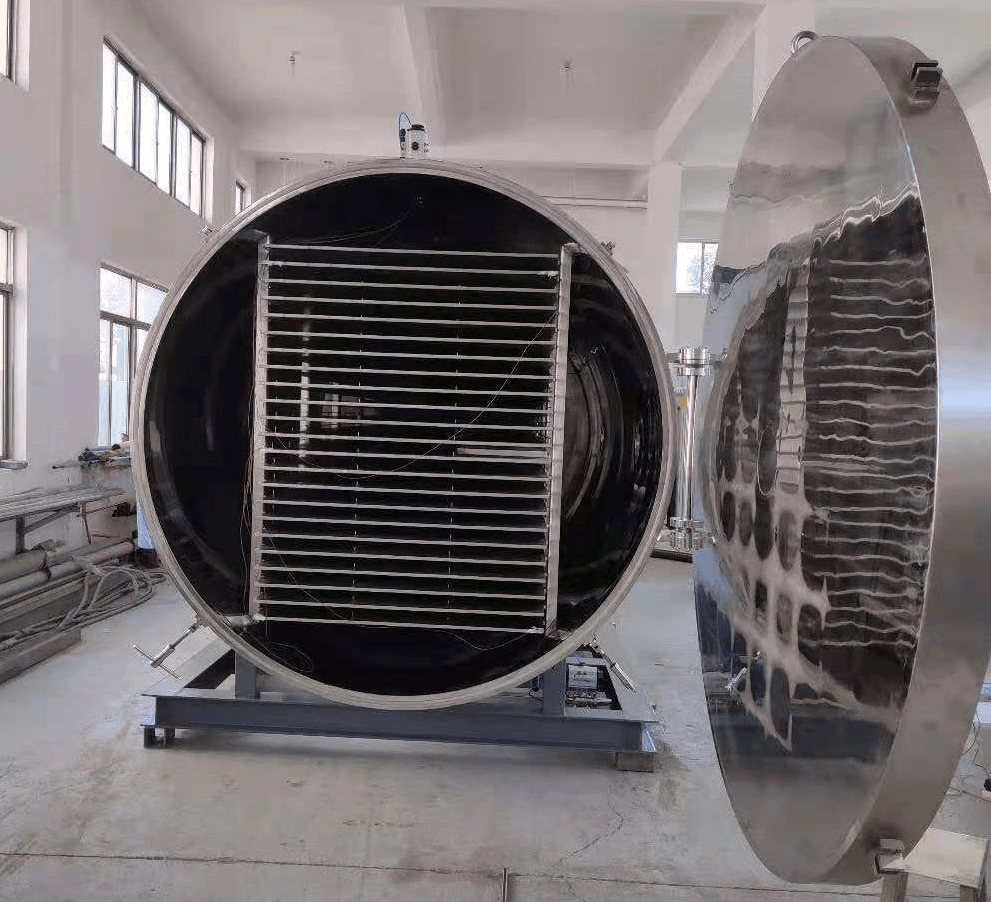

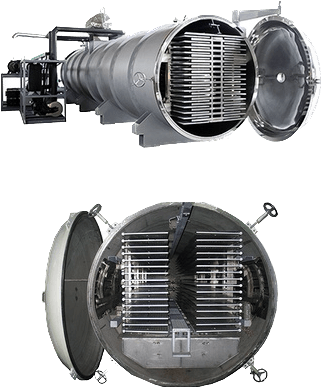

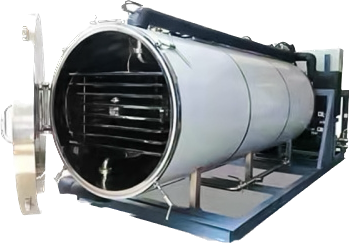

RADIANT DRYERS

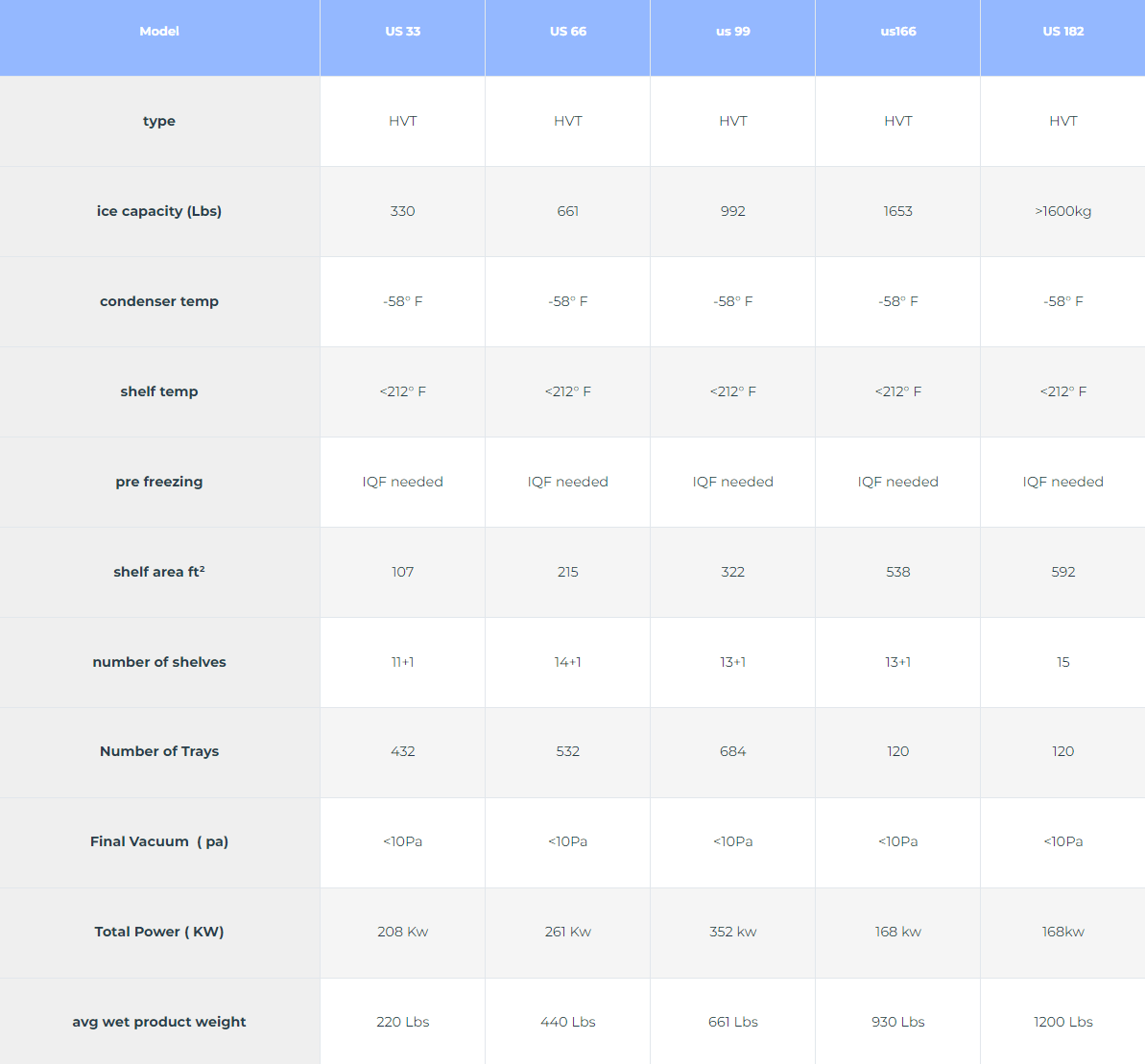

mid sized radiant freeze dryer specs
Model US 33 US 66 us 99 us166 US 182
type HVT HVT HVT HVT HVT
ice capacity (Lbs) 330 661 992 1653 >1600kg
condenser temp -58° F -58° F -58° F -58° F -58° F
shelf temp <212° F <212° F <212° F <212° F <212° F
pre freezing IQF needed IQF needed IQF needed IQF needed IQF needed
shelf area ft² 107 215 322 538 592
number of shelves 11+1 14+1 13+1 13+1 15
Number of Trays 432 532 684 120 120
Final Vacuum ( pa) <10Pa <10Pa <10Pa <10Pa <10Pa
Total Power ( KW) 208 Kw 261 Kw 352 kw 168 kw 168kw
avg wet product weight 220 Lbs 440 Lbs 661 Lbs 930 Lbs 1200 Lbs

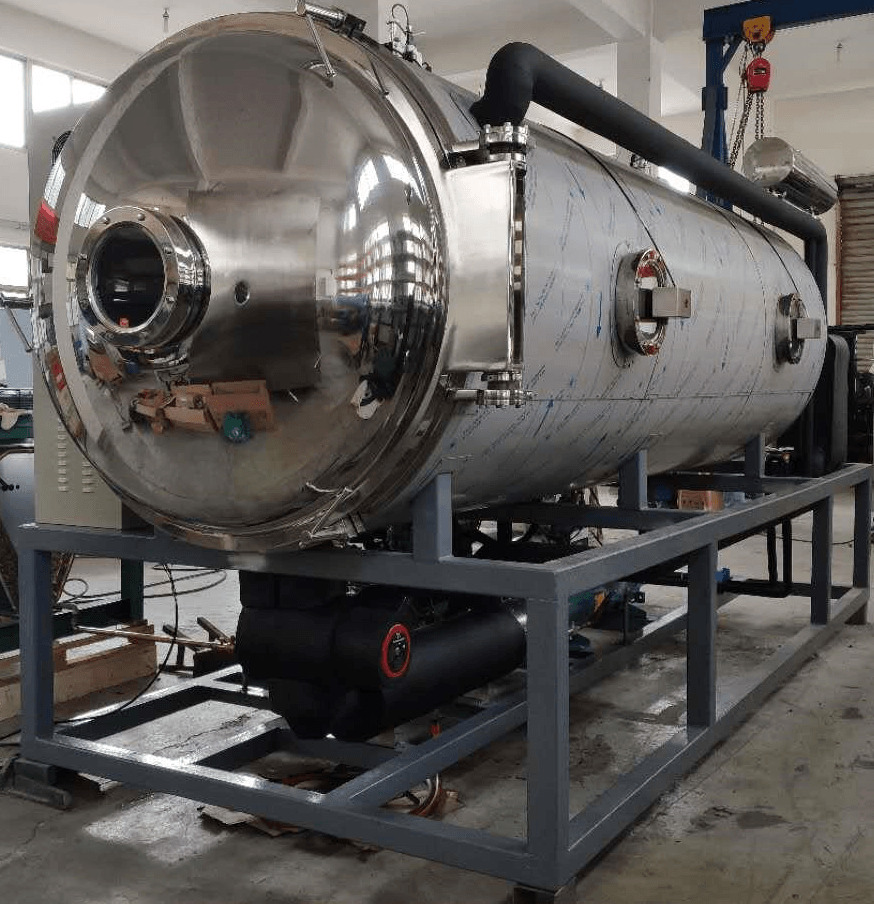

  • Food freeze dryer

    Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Customizable Redundancy

    With options to build redundancy in the compressors, and vacuum pumps, you can eliminate downtime, for repair or maintanace.

  • Sanitation

    With optional CIP or SIP for cleaning ensuring if you dry multiple products, there is no risk of cross contamination.

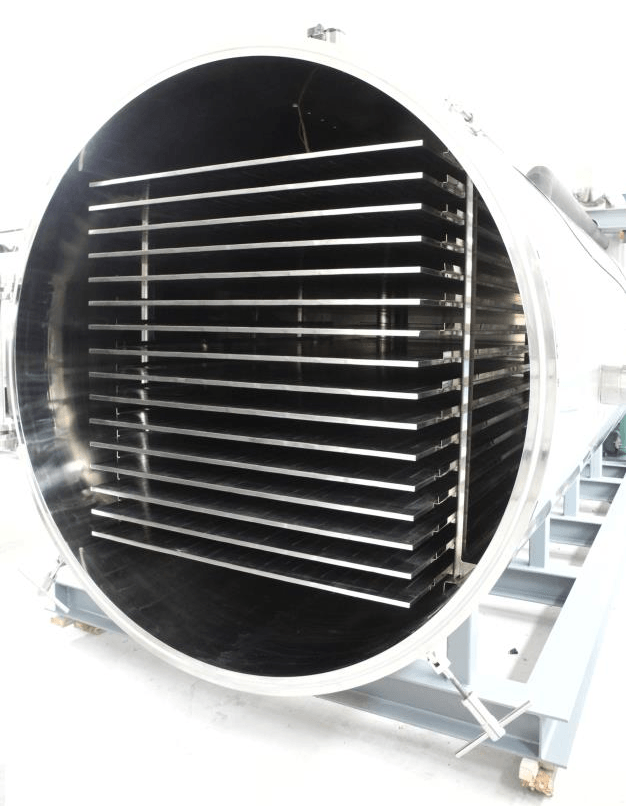

  • Conductive heating

    Aerospace grade aluminum alloy allows for even double sided Radiant heating where all the shelves are within a degree of the Shelf setpoint.  Radiant Drying offers a more even drying opposed to   Conductive drying.  Ensuring faster runtimes, and reduced energy costs.  Outdated walk in Dryers are limited in how the heat transfer from the heating element to product is obtained. This is what causes the longer runtimes.  The difference in heat from the conductive tray the product rests on, vs the Radiant heat recieved from above.

  • in SITU Freezing

    This freeze dryer can feeze the product on the shelves in the freeze dryer.  This is beneficial if your dont have ample freezing that can handle depth and also for process control for products that require the full control of the drying profile especially at negative temps.

  • Condenser coils for Ice Capture

    Using a high efficiency mixed refrigeration mix allows for a long service lifem with high heat tranfer effiency allowing for faster sublimation, allowing you to drive heat faster to the product without experiencing collapse.

  • Control Package

    Our controls are flexible in allowing both manual and automatic mode during drying.   We offer the ability to remote operate the machine through a secure connection.   Adins can set user level access and passwords.

  • Optimized Process Control

    Precise control of the vacuum and heating during each set point.  Ability to control each step and ramp rate.

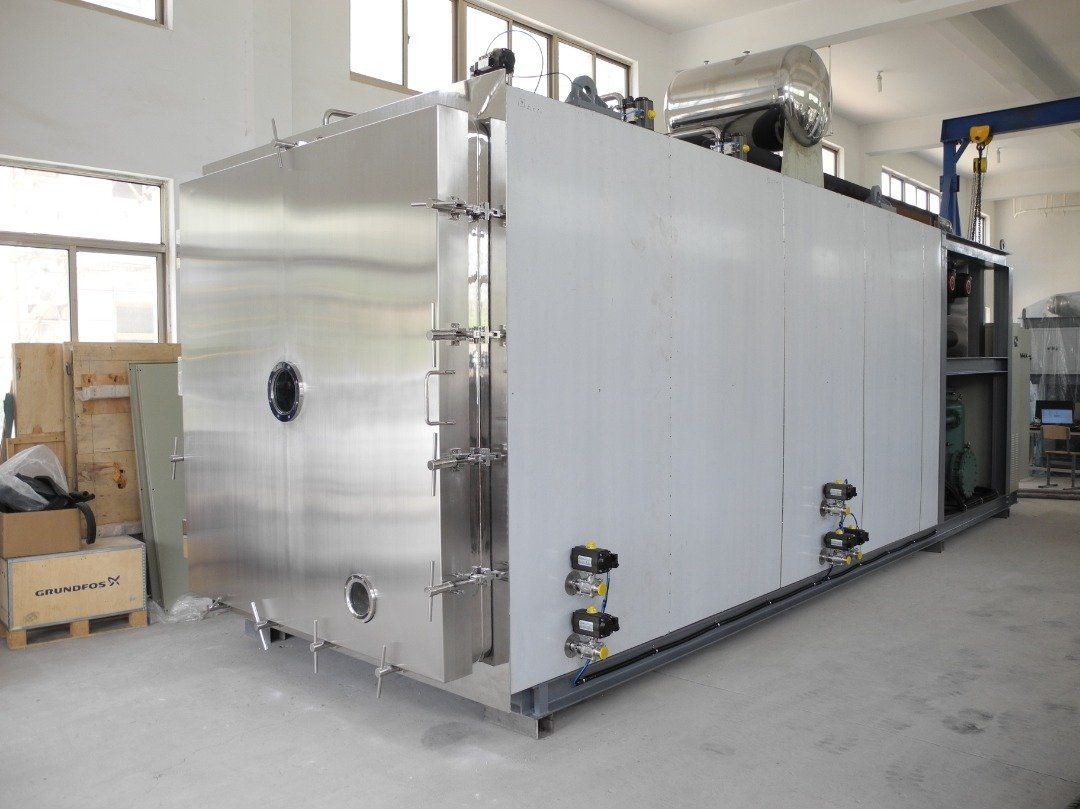

CONDUCTIVE DRYERS

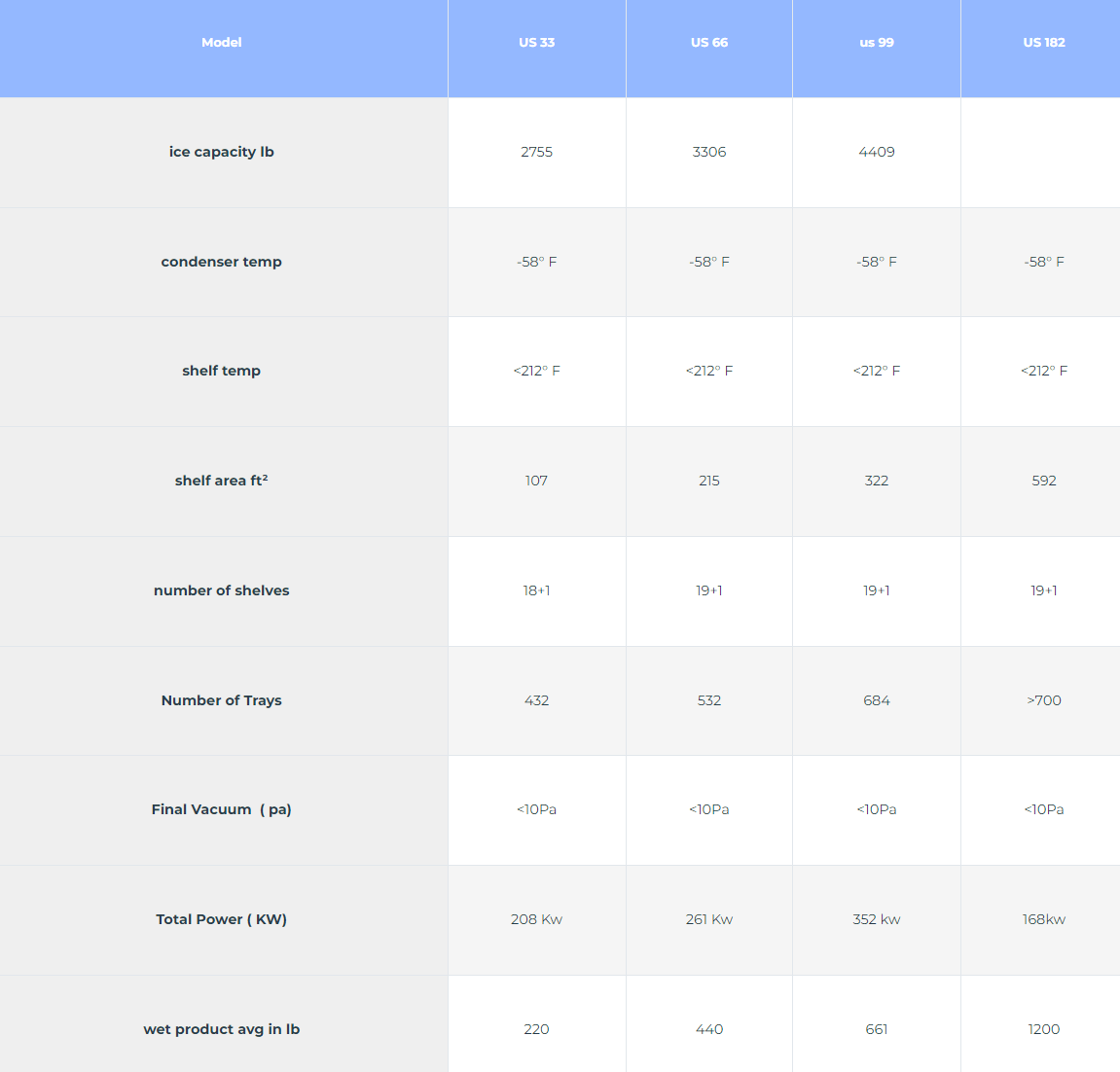

mid sized conductive freeze dryer specs

  • Customizable Redundancy

    With options to build redundancy in the compressors, and vacuum pumps, you can eliminate downtime, for repair or maintanace.

  • Sanitation

    With optional CIP or SIP for cleaning ensuring if you dry multiple products, there is no risk of cross contamination.

  • Conductive heating

    Aerospace grade aluminum alloy allows for even double sided Radiant heating where all the shelves are within a degree of the Shelf setpoint.  Radiant Drying offers a more even drying opposed to   Conductive drying.  Ensuring faster runtimes, and reduced energy costs.  Outdated walk in Dryers are limited in how the heat transfer from the heating element to product is obtained. This is what causes the longer runtimes.  The difference in heat from the conductive tray the product rests on, vs the Radiant heat recieved from above.

  • in SITU Freezing

    This freeze dryer can feeze the product on the shelves in the freeze dryer.  This is beneficial if your dont have ample freezing that can handle depth and also for process control for products that require the full control of the drying profile especially at negative temps.

  • Condenser coils for Ice Capture

    Using a high efficiency mixed refrigeration mix allows for a long service lifem with high heat tranfer effiency allowing for faster sublimation, allowing you to drive heat faster to the product without experiencing collapse.

  • Control Package

    Our controls are flexible in allowing both manual and automatic mode during drying.   We offer the ability to remote operate the machine through a secure connection.   Adins can set user level access and passwords.

  • Optimized Process Control

    Precise control of the vacuum and heating during each set point.  Ability to control each step and ramp rate.

Model US 33 US 66 us 99 US 182
ice capacity lb 2755 3306 4409
condenser temp -58° F -58° F -58° F -58° F
shelf temp <212° F <212° F <212° F <212° F
shelf area ft² 107 215 322 592
number of shelves 18+1 19+1 19+1 19+1
Number of Trays 432 532 684 >700
Final Vacuum ( pa) <10Pa <10Pa <10Pa <10Pa
Total Power ( KW) 208 Kw 261 Kw 352 kw 168kw
wet product avg in lb 220 440 661 1200
