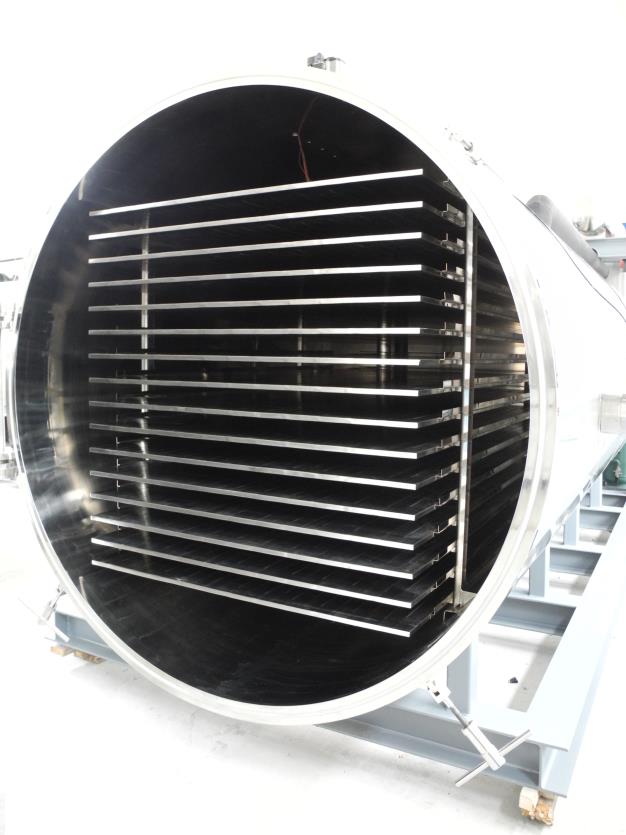

US 820 HVT

US 820 HD

Call for details. Our largest dryer with a true weight capacity around 5000 Lbs.  At half the cost of the our competitors.   Need we say more?

DOWNLOAD PDF

Dimensions

Capacity

Other

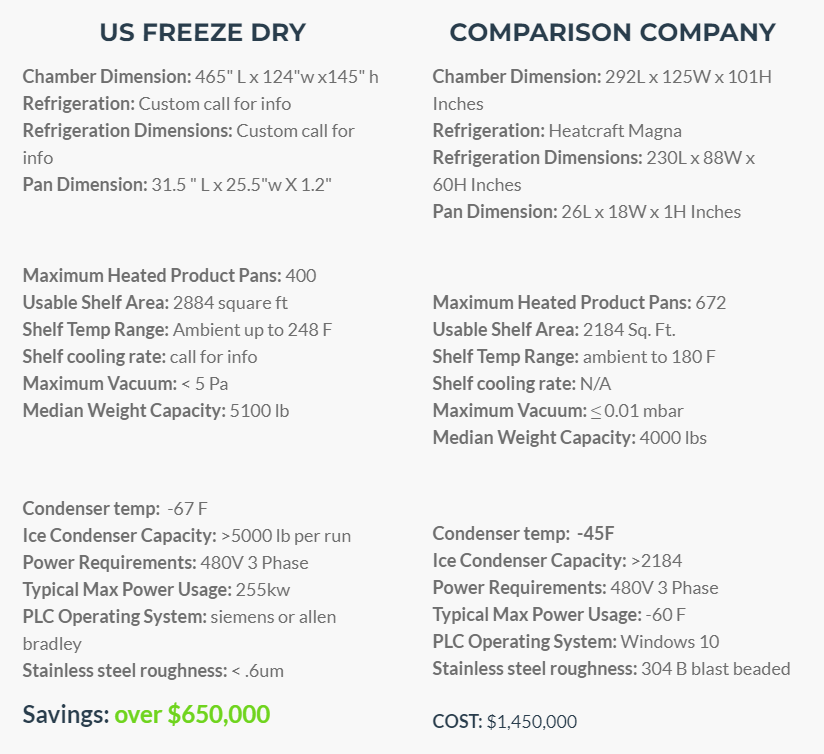

US FREEZE DRY

Chamber Dimension: 465" L x 124"w x145" h

Refrigeration: Custom call for info

Refrigeration Dimensions: Custom call for info

Pan Dimension: 31.5 " L x 25.5"w X 1.2"

Maximum Heated Product Pans: 400

Usable Shelf Area: 2884 square ft

Shelf Temp Range: Ambient up to 248 F

Shelf cooling rate: call for info

Maximum Vacuum: < 5 Pa

Median Weight Capacity: 5100 lb

Condenser temp:  -67 F

Ice Condenser Capacity: >5000 lb per run

Power Requirements: 480V 3 Phase

Typical Max Power Usage: 255kw

PLC Operating System: siemens or allen bradley

Stainless steel roughness: < .6um

Savings: over $650,000

COMPARISON COMPANY

Chamber Dimension: 292L x 125W x 101H Inches

Refrigeration: Heatcraft Magna

Refrigeration Dimensions: 230L x 88W x 60H Inches

Pan Dimension: 26L x 18W x 1H Inches

Maximum Heated Product Pans: 672

Usable Shelf Area: 2184 Sq. Ft.

Shelf Temp Range: ambient to 180 F

Shelf cooling rate: N/A

Maximum Vacuum: ≤ 0.01 mbar

Median Weight Capacity: 4000 lbs

Condenser temp:  -45F

Ice Condenser Capacity: >2184

Power Requirements: 480V 3 Phase

Typical Max Power Usage: -60 F

PLC Operating System: Windows 10

Stainless steel roughness: 304 B blast beaded

COST: $1,450,000

Feature Comparison

US FREEZE DRY COMPARISON COMPANY
Polished Stainless Steel Exterior and Stainless Steel Interior
304b Blast Beaded X
More Economical Refrigeration
Can Shelves Freeze Product
Reduced Loading time and Improves Efficiency
Deeper Vacuum with Less Power Consumption
Ability to Clean the Heating/Cooling Shelves the Product Trays Sit On
Green Energy Utility and Water Saving Ability (Ask us about it.)
Stainless Steel Heating and Cooling Shelves
Ice Falls in the Same Chamber as Product is Loaded X
Must Drag the Ice Out by Hand Before Loading X
Made with Aluminum Carts X
Aluminum Trays X
